The difference between an M22-14mm and M22-15mm fitting isn't the outer screw thread. It's the outside diameter of that center brass sealing pin inside the collar. Threading a standard 14mm hose onto a 15mm pump leaves an unsealed 1mm annular gap. Under 2,000 PSI, water blows right past the rubber O-ring. It blasts your boots and instantly kills your pressure.
Quick Symptom Diagnostic: What Just Happened to Your Fitting?
- Symptom 1: Water geyser shooting out of the threaded collar under load. You screwed an M22-14mm hose or gun onto an M22-15mm pump (classic Sun Joe SPX3000 or AR Blue Clean AR383). The collar threads on smoothly. But that 14mm stem floats inside the 15mm bore without touching the walls. The O-ring never seals. The Fix: Thread on an M22-15mm Male to M22-14mm Female step-down adapter.
- Symptom 2: Hose collar won't thread or jams halfway in. You tried shoving a 15mm hose or wand into an industry-standard 14mm pump or gun. The 15mm pin hits the narrower 14mm bore. It won't seat. Never force it with a wrench. You'll crack the pump manifold or crush the brass stem.
Mechanical Engineer's Note: The Physics of Radial O-Ring Sealing
Folks ask me all the time: “If the fitting is the wrong size, why does it screw on tightly without cross-threading?”
Here's the mechanical reality. Both fittings share the exact same thread spec: M22 × 1.5. That means a 22mm outside thread diameter with a 1.5mm thread pitch. But straight metric threads provide zero fluid sealing. Their sole job is axial clamping force to hold the joint tight.
The actual hydraulic seal relies entirely on radial compression. A rubber O-ring must squeeze against a precision-machined bore wall. We calculate that radial clearance gap like this:
Slide an M22-14mm male stem (14.0mm OD) into an M22-15mm female port (15.0mm ID). The radial gap is (15.0 − 14.0) / 2 = 0.50mm on all sides. That's a 1.0mm total annular mismatch. A standard Nitrile (NBR 70) O-ring only handles about 0.20mm to 0.25mm of total squeeze.
The gap is twice what the rubber can bridge. The O-ring never touches the wall. Hit it with 2,000+ PSI, and water blows the elastomer backward into the clearance gap. In engineering, we call that O-ring extrusion blowout. Water erupts backward through the unsealed threads instantly.

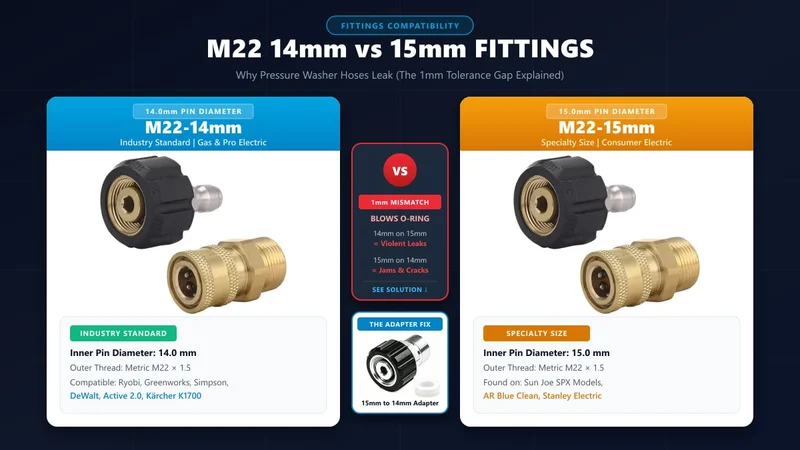

Visual Dimension Comparison: Stem Geometry
To see why people get tripped up, look at how an M22 coupler is built. Every M22 connection has two distinct surfaces:
- The Outer Collar: A 22mm diameter threaded sleeve with standard M22 × 1.5 threads. On female fittings, that's the black plastic or knurled brass spin collar. On male fittings, that's the outer threaded brass shank.
- The Inner Sealing Pin (Stem / Bore): The smooth brass post protruding from the center. This is where 14mm and 15mm part ways. A rubber O-ring sits in a machined groove near the tip of this stem.
Because the outer 22mm threads match perfectly, an M22-14mm female hose collar spins right onto an M22-15mm male pump outlet. It feels snug. You think it's ready to wash. Then you turn on the water, pull the trigger, and get soaked.
Brand Compatibility Matrix: 14mm vs 15mm
Before buying a replacement hose (like UberFlex), fixing a leaking hose, or grabbing a stubby gun, check your machine's outlet standard below:
| Brand & Equipment Category | Pump Outlet Fitting | Spray Gun Inlet Fitting | Adapter Required for Standard 14mm Hose? |
|---|---|---|---|
| Sun Joe (All SPX Electric Models) | M22-15mm (15.0mm Pin) | M22-15mm | YES (Requires 15mm to 14mm Step-Down) |
| AR Blue Clean (Electric Consumer) | M22-15mm (15.0mm Pin) | M22-15mm | YES (Requires 15mm to 14mm Step-Down) |
| Stanley (Electric Models) | M22-15mm (15.0mm Pin) | M22-15mm | YES (Requires 15mm to 14mm Step-Down) |
| Ryobi (Electric & Gas Units) | M22-14mm (Industry Standard) | M22-14mm | NO (Direct Plug & Play) |
| Greenworks (Electric & Pro 2300) | M22-14mm (Industry Standard) | M22-14mm | NO (Direct Plug & Play) |
| Active 2.0 & Active 2.3 | M22-14mm (Industry Standard) | M22-14mm | NO (Direct Plug & Play) |
| Kärcher K1700 / K1800 / K1900 / Gas | M22-14mm (Industry Standard) | M22-14mm | NO (Direct Plug & Play) |
| Simpson Cleaning (MegaShot & PowerShot) | M22-14mm (Industry Standard) | M22-14mm | NO (Direct Plug & Play) |
| DeWalt, Craftsman, Generac, Westinghouse | M22-14mm (Industry Standard) | M22-14mm | NO (Direct Plug & Play) |
| Kärcher K2 / K3 / K4 / K5 Consumer | Proprietary Quick Clip | Proprietary Quick Clip | Requires Kärcher Bayonet Adapter |
Notice the dividing line. Almost all gas pressure washers and contractor electric units stick strictly to M22-14mm. Sun Joe and a few consumer electric brands chose a 15.0mm pin instead. That single millimeter difference creates almost all aftermarket hose headaches.
How to Measure Your Fitting (3 Field-Tested Methods)
Have an unbranded washer or a replacement pump? Don't guess. Use one of these three bench tests to measure your stem diameter:
1. The Digital Caliper Method (Most Accurate)
Zero your digital calipers. On a male fitting (the outlet with external threads), measure the outside diameter (OD) of that center brass stem. If it reads 14.0mm (±0.05mm), it's an M22-14mm. If it reads 15.0mm (±0.05mm), it's an M22-15mm. On a female hose collar, slide your caliper's internal jaws inside the center bore cavity. A 14.0mm bore takes a 14mm stem. A 15.0mm bore takes 15mm.
2. The 9/16-Inch Drill Bit Test (No Calipers Needed)
Don't own digital calipers? Grab your drill bit set. This test takes 10 seconds flat:
- Grab a standard 9/16-inch high-speed steel drill bit.
- Turn the bit around. You want the smooth cylindrical shank, not the fluted cutting tip. A 9/16" shank measures exactly 14.288mm.
- Slide that smooth shank into the female bore of your hose fitting or pump outlet:
- If the shank slips inside easily: The bore is 15.0mm. You have an M22-15mm fitting.
- If the shank stops and won't enter: The bore is 14.0mm (14.28mm won't fit in a 14.0mm hole). You have an M22-14mm fitting.
3. The Visual Wall-Thickness Check
Coins won't give you precision millimeter tolerances. But your eyes can spot the pin thickness once you know what to check.
A 14mm male stem has a visibly thinner brass wall than a 15mm stem. The central water passage is the exact same size on both fittings. That means the extra millimeter on a 15mm fitting goes into thicker brass around the O-ring groove. If the center pin looks heavy and fills most of the collar cavity, it's 15mm. If there's plenty of daylight around the center pin, it's 14mm.
Need Help Matching Your Exact Pressure Washer?
Want to double-check your machine? We built a free diagnostic tool that maps 19 major brands and 50+ models directly to leak-proof fittings, foam cannons, and nozzle orifices.
OPEN INTERACTIVE FITTING FINDERHow to Fix the M22 Mismatch: 4 Shop-Tested Solutions
Got leaks or mismatched fittings? Don't buy a new pressure washer. A few solid brass conversion adapters solve every combination on your bench:

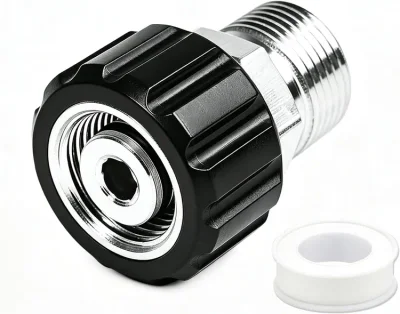

- The Go-To Sun Joe Bridge: Threads straight onto a 15mm pump outlet (Sun Joe, AR Blue Clean, Stanley). Its 15.0mm stem seals tight against the pump's internal bore.
- Standard 14mm Outlet: Converts your pump to an industry-standard M22-14mm male thread.
- Run Commercial Accessories: Lets you hook up UberFlex hoses, short stubby guns, and standard quick-connects with zero leaks.
- Machined Solid Brass: Built from heavy electroplated brass rated to 4,500 PSI.

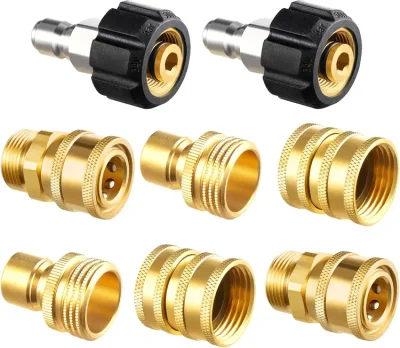

- Ditch the Thread Twisting: Converts your pump outlet, hose ends, spray gun inlet, and garden hose spigot to one-click quick connects.
- Precision 14.0mm Stems: Fits Ryobi, Greenworks, Simpson, DeWalt, Active 2.0, and Kärcher K1700 pumps with zero slop.
- Full-Flow 3/8" High-Pressure Couplers: Stainless steel ball locks hold firm during 5,000 PSI pressure spikes.
- Includes Brass 3/4" GHT Garden Hose Snaps: Replaces leaky plastic hose bib connections with heavy brass clicks.

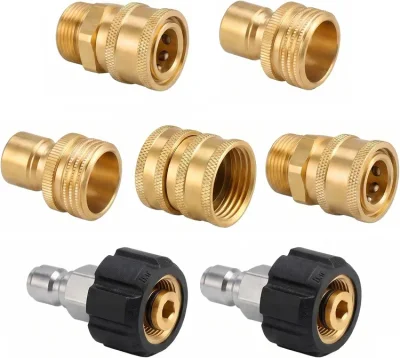

- Built for 15mm Rigs: Sized specifically for Sun Joe, AR Blue Clean, and Stanley washers with 15.0mm pump bores.
- True 15.0mm Stems: Pins seat tightly into 15mm ports, giving you correct O-ring compression without spray-back.
- 8-Piece Complete Rig: Converts your pump outlet to a 3/8" QC socket, stock hose to 3/8" plugs, and water intake to brass 3/4" GHT.
- Solid Brass & 304 Stainless: Rated for 5,000 PSI commercial duty with durable Viton backup rings.

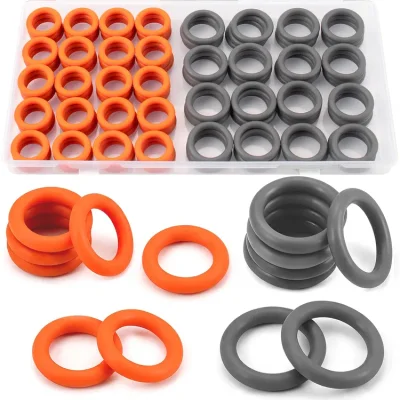

- Stops 90% of Drips: Even matched fittings will drip when the rubber O-ring dries out, flattens, or nicks.
- Multi-Size Assortment: Packs fresh O-rings for 1/4" QC, 3/8" QC, M22-14mm stems, and M22-15mm stems.
- Chemical & Detergent Tough: Molded from Nitrile 70 and high-temp FKM Viton to handle harsh detergents and bleach.
- Includes Brass-Safe Pick Tool: Lets you pop out mangled rings without gouging the internal sealing groove.
Step-by-Step Upgrades: Real-World Scenarios
Scenario A: Upgrading a Sun Joe SPX3000 with a Short Stubby Gun
The stock three-foot plastic wand on a Sun Joe SPX3000 is clumsy around wheels and rooflines. Swapping it for a short snub gun (like this Commercial Short Snub Gun) makes washing 10 times easier. But stubby guns use standard M22-14mm inlets:
- Your factory Sun Joe hose has an M22-15mm female collar at the gun end.
- Your new short stubby gun has an M22-14mm male inlet plug.
- Thread them together directly, and you'll soak your forearm under pressure.
- The Fix: Thread an M22-14mm Male to M22-15mm Female step-up adapter into the gun inlet. Or convert both ends to 3/8" quick connects with our master conversion kit.
Scenario B: Replacing a Stiff Stock Plastic Hose with an UberFlex Hose
Stock PVC hoses fight you every inch. They coil up, kink, and trip you. Swapping to a supple hose like the UberFlex feels like night and day. But commercial hoses ship with standard M22-14mm female couplers on both ends:
- If you run a Ryobi, Greenworks, Simpson, Active 2.0, or Kärcher K1700: The UberFlex hose threads straight onto your pump outlet. Zero adapters needed.
- If you run a Sun Joe SPX: Screw the M22-15mm to 14mm Step-Down Adapter onto the pump outlet first. Then spin your UberFlex hose right onto the adapter. It seals tight on the first try.
Why Teflon Tape Won't Fix an M22 Leak (And Makes It Worse)
When an M22 joint sprays water, most DIYers reach for white Teflon (PTFE) tape. Stop right there. Do not put Teflon tape on M22 threads.
Here's why. Teflon tape is engineered strictly for tapered pipe threads like NPT. On NPT fittings, threads are cut on a slight cone angle (1 in 16 taper). As you tighten NPT joints, thread crests and roots crush together. Teflon tape fills microscopic thread voids to form the seal.
M22 fittings work on an entirely different mechanical principle:
- The threads don't seal water. They're straight, parallel metric threads. Their only job is mechanical clamping force to hold the joint tight.
- The real seal is an internal O-ring. The rubber ring seats against a smooth internal bore.
- Tape blocks collar travel. Wrapping tape around M22 threads bulks up the pitch. That prevents the outer spin collar from threading down its full 6 to 8 rotations.
- The O-ring can't seat. Because the collar jams early, the brass stem never reaches the bore's sealing zone. Your leak actually gets worse.
- Tape shreds destroy pumps. Strands of PTFE tape tear off in the water stream. They drift into your pump check valves, lodge under the unloader piston, or plug up 1.1mm foam cannon orifices.
If an M22 fitting leaks, it's never a thread problem. It's either a 14mm vs 15mm mismatch or a damaged rubber O-ring. Keep the Teflon tape in the plumbing drawer.
Najam's Shop Rule for M22 Fittings
Never guess fitting sizes by eye, and never seal straight threads with tape. If you own a Sun Joe, grab the 15mm-to-14mm step-down adapter on day one. Once your pump has a 14mm male outlet, every standard hose, gun, and quick-connect clicks on leak-free.
